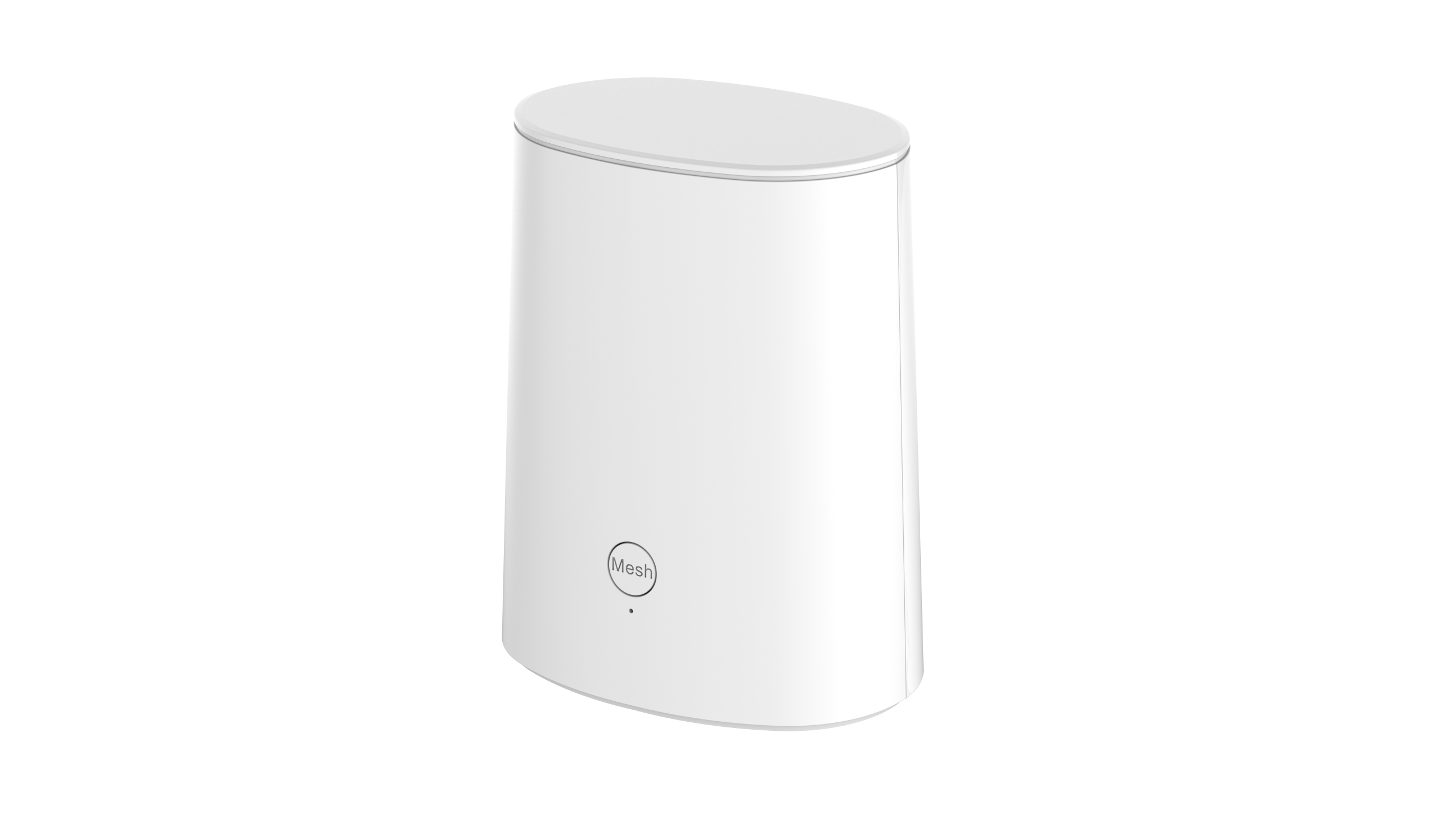

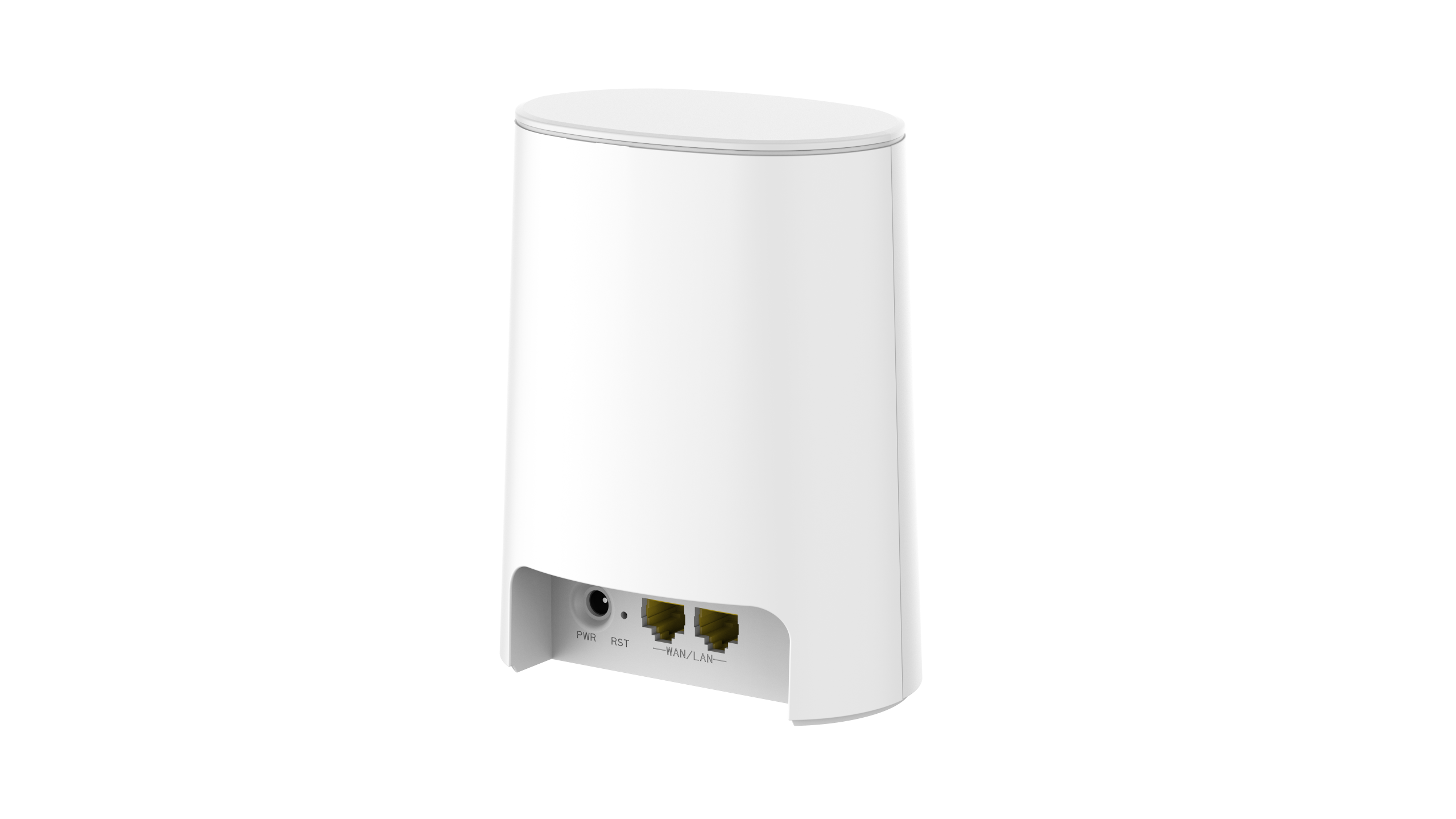

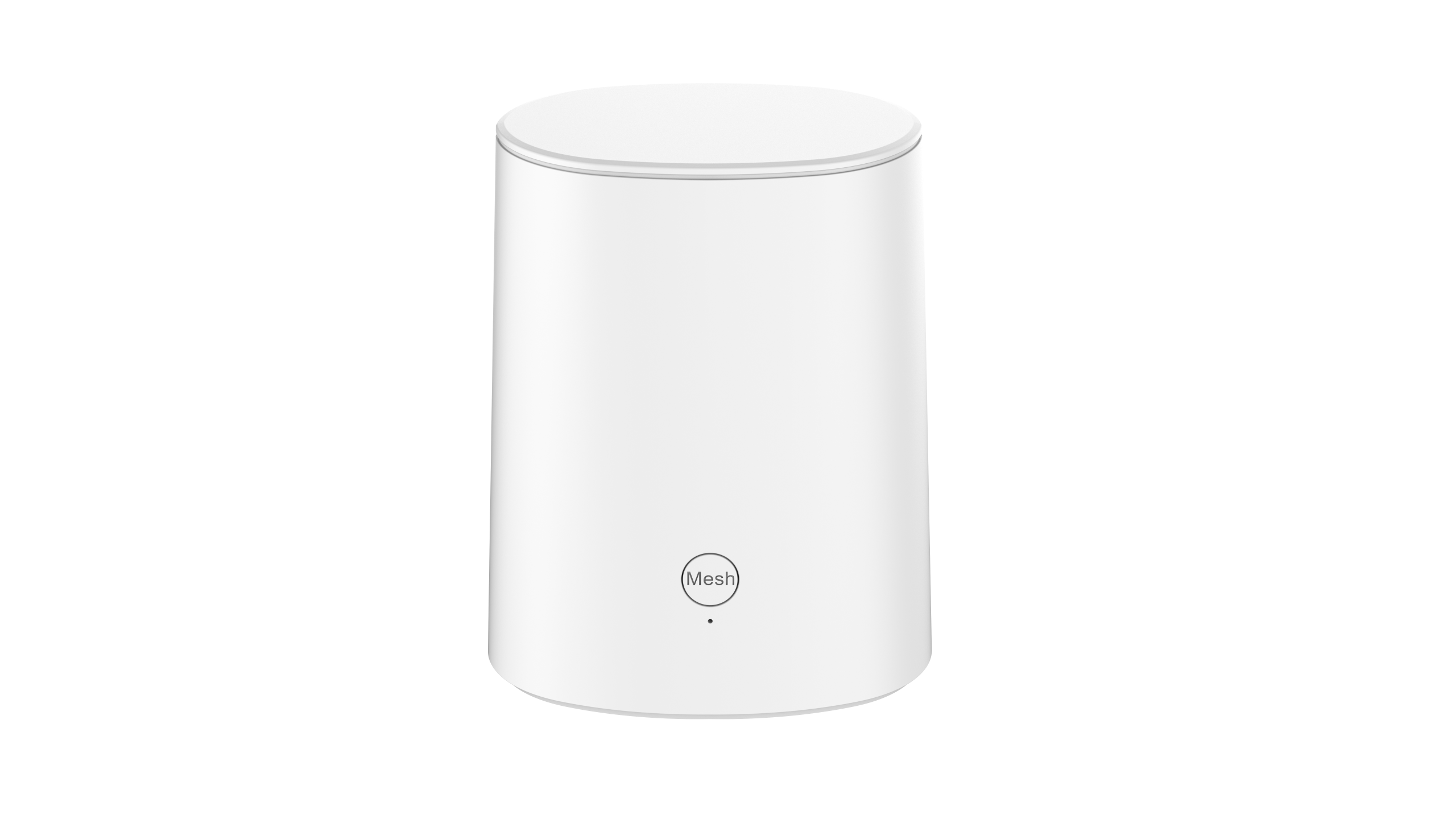

AP-650
- AX3000 Mesh Home AP
- 802.11b/g/n/ac/ax complaint, dual-band WIFI 2.4GHz&5GHz (2.4GHz 574Mbps, 5GHz 2402Mbps)
- 1GE WAN+2GE LAN
- TR-069 Management
- EasyMesh
Connect with us
For the latest Orfa Tech news and promotions.
AX3000 MESH Home Router
AX3000 WiFi 6 Performance
The AP650 adopts the WiFi 6 standard, supporting dual-band concurrent connections with total speeds up to AX3000. Technologies such as OFDMA and MU-MIMO significantly improve multi-device transmission efficiency and reduce latency.
Advanced Security Features
Equipped with WPA3 encryption, WPS capability, and built-in firewall protections against TCP/UDP/ICMP flood attacks for robust network security.
EasyMesh Whole-Home Networking
Supports the EasyMesh standard, allowing multiple routers to form a unified Wi-Fi network automatically. Devices connect and roam seamlessly without manual configuration, eliminating dead zones and ensuring consistent coverage from room to room.
TR-069 Remote Management
The AP650 supports TR-069 protocol, enabling service providers to remotely configure, monitor, and update devices through an Auto Configuration Server (ACS). This significantly reduces on-site technical work and customer support costs.
Main Specification
AP-650 Hardware |
|

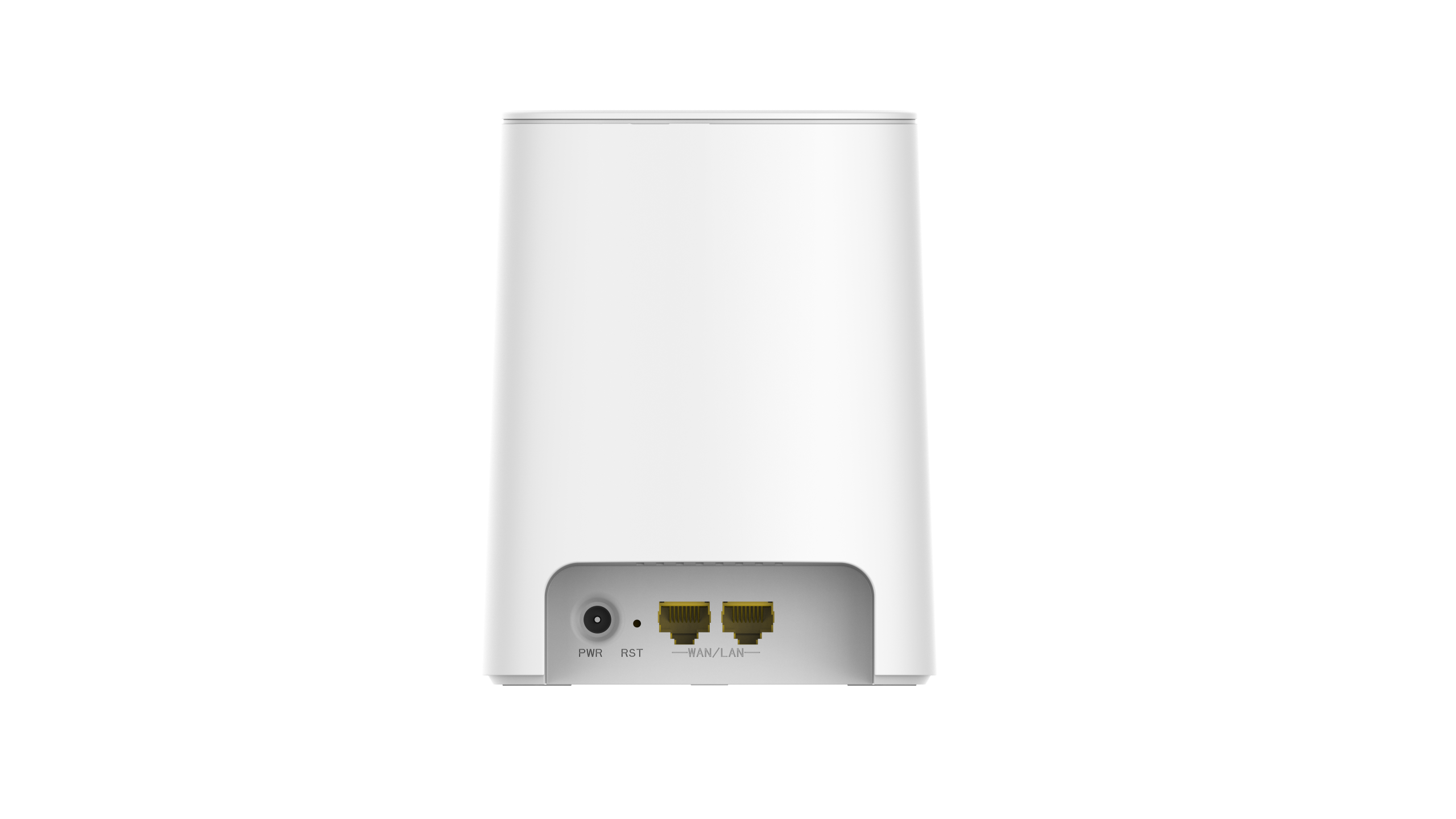

Interface description |
|
| WAN | 1*10/100/1000 Base-T with RJ45 connectors |
| LAN | 2*10/100/1000 Base-T with RJ45 connectors |
| WLAN | 2T2R 2.4GHz 802.11b/g/n, 574Mbps 2T2R 5.8GHz 802.11a/n/ac, 2402Mbps |
| WIFI Antenna | 2 internal antennas |
| Mesh | 1 Mesh button |
| Reset | 1*Pinhole reset button |
| Power | +12V (external AC/DC adapter) |
LED Indicator |
|
| PWR Internet 2.4G 5G WAN LAN | |
WIFI Features |
|
| Standard | 11N: 2.4~2.4835GHz 11AX: 5.150~5.825GHZ 802.11a/b/g/n/ac/ax |
| Modulation schemes | OFDM = BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM DSSS = DBPSK, DQPSK, CCK |
| Transfer Rate | 5G HE20: up to 286.8Mbps HE40: up to 576.5Mbps HE80: up to 1201Mbps 2.4G HE20: up to 286.8Mbps HE40: up to 576.5Mbps |
Power Supply |
|
| Power supply | External AC/DC power adapter 12V 1.5 A |
| Power Consumption | less than 18W |
Working Environment |
|
| Temperature | 0℃ ~ 40℃ |
| Humidity | 5%~ 95% relative humidity |
Installation |
|
| Desk | Desk-top |
| Wall | Wall-Mounted |
AP-650 Software |
|
General |
|
| RFC0768 UDP RFC0791 IP RFC0792 ICMP RFC0793 TCP RFC0826 Ethernet ARP RFC0894 IP over Ethernet RFC0922 Broadcasting Internet Datagrams RFC0950 Internet Standard Subnetting IEEE802.3 Ethertype IEEE802.1p IEEE 802.11b IEEE 802.11g IEEE 802.11n RFC2516 PPP Over Ethernet (PPPoE) RFC1662 PPP in HDLC-like Framing RFC1332 PPP Internet Protocol Control Protocol RFC1042 A standard for the Transmission of IP Datagrams over IEEE 802 Networks IPoE (a.k.a IP over Ethernet over AAL5) DHCP server、client NAT, NAPT and ALG DMZ and Port forwarding(Virtual server) PPTP、L2TP VPN、GRE IGMP proxy and MLD for IPTV Logs and statistics TR-069 remote management Flexible and secure SPI Firewall, Denial of Service (DoS) protection Port filtering 、IP filtering and MAC filtering URL filter QoS Flow Control DDNS IPV6 Static route SNTP Date/time update from Internet Time Server WEB GUI Embedded AP with 4 SSIDs Wireless Repeater Wireless client mode Wireless site survey Wireless ACL WPS Separate authentication for each SSID Wireless schedule Easy mesh Multiple wan and 802.11q vlan Bridge Ping Diagnostics and Traceroute Diagnostics |
Documentation
[sp_easyaccordion id="4452"]
Ordering Info
AX3000 Whole Home Mesh WiFi6 | AP-650 |
|
| Description | 1GE WAN+2GE LAN AX3000 Mesh Home AP |
| Warranty Period | 12 Months |
| Accessories Pack | 1* 12V 1.5A Power Adapter (EU/ US /UK type), 1* AP-650 |
