CATV GPON ONU OG-92SC

Good Price 1GE+CATV XPON ONU

OG-92SC

XPON ONU, GPON/GEPON Auto-adaptive
1*GE LAN Port
1*RF output with AGC
CATV Function Enabled/Disabled Remotely Through OMCI/ TR-069

1GE+CATV XPON ONU, One Fiber For Internet& Cable TV

The OG-92SC is XPON ONU (GPON/GEPON ) equipped with 1*GE +1* CATV interface, enabling telecom operators to deliver services of internet and cable tv on one fiber.

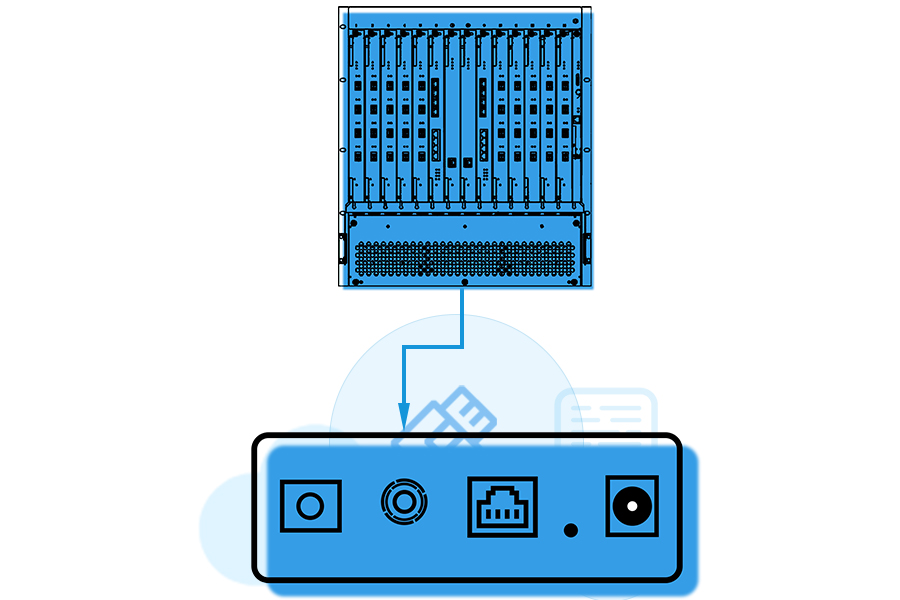

CATV Enable/Disable Remotely, Working Properly With Different OLT Platforms

With the powerful firmware inside, the OG-92SC is fully compatible with different kinds of OLT platforms, such as HUAWEI, ZTE, FIBERHOME, and BDCOM, telecom operators can enable or disable the CATV function of OG-92SC remotely from the OLT side.

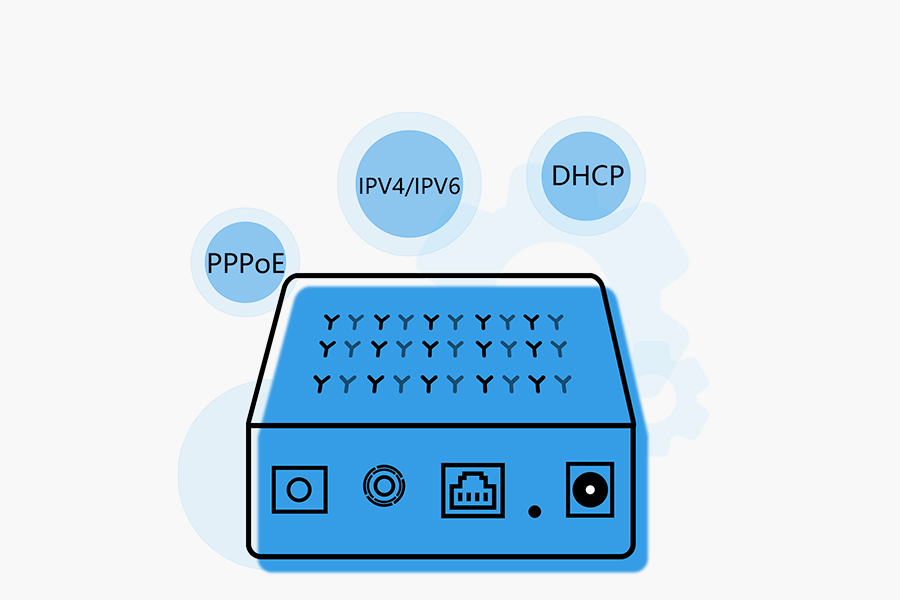

Layer 3 Gateway Unit, Multiple Function Supported

The OG-92SC is capable to work as a Gateway Unit, it supports multiple layer 3 functions, like IPV4/IPV6, PPPoE, NAT, DMZ, DDNS, and DHCP.

Main Specification

OG-92SC Hardware
Interface description
WAN (Fixed Optical Connector )	SC/APC or SC/UPC
LAN	1*10/100/1000 Base-T with RJ45 connectors
RF	1 RF Output With F-Type Connector, Support AGC
Reset	1*Pinhole Reset Button
Power	+12V (external AC/DC adapter)
LED Indicator
POWER PON LOS LAN CATV
GPON features
SFF type laser, SC/APC or SC/UPC connector Bosa onboard optical solution Receiving sensitivity -27dBm (-33dBM optional), and -8dBm overload, Transmitting optical power: 0.5dBm~+4dBm 1.244 Gbps burst mode upstream transmitter; 2.488 Gbps downstream receiver Wavelengths: upstream 1310nm, downstream 1490nm
Ethernet features
1* 10/100/1000 Base-T MDI/MDIX RJ-45 port compliant IEEE 802.3/802.3u Hardware-based 10/100/1000, full/half, flow control auto negotiation Non-blocking wire speed reception and transmission Full duplex IEEE 802.3x flow control and half duplex back-pressure flow control
CATV Features
Optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm CATV responsivity: ≥0.9A/W @1550nm Broadband/roughness: 45～1005/≤ ±0.75MHz/dB（@-15～-10dBm） Output level: ≥75dBuv (@-15～-3dBm, 3.5%） Reflection loss: ≥16dB（ 75Ω） CNR/MER: ≥45/32dB（-9dBm，PAL-D 60CH，OMI3.8%） CTB/CSO/HUM: ≥60/≥60/≥46dB
Power Supply
Power supply	External AC/DC power adapter 12V 0.5A
Power Consumption	less than 7W
Working Environment
Temperature	-10℃ ~ 40℃
Humidity	10%~ 95% relative humidity
Installation
Desk	Desk-top
Wall	Wall-Mounted

OG-92SC Software
GPON
ITU-T G.984.X standard Complaint 8 T-CONTs & 32 GEM Ports per device Flexible mapping between GEM Ports and T-CONT Support for Multicast GEM Port AES-128 Decryption with key generation and switching FEC (Forward Error Correction) 802.1p mapper service profile on U/S Activation with automatic discovered SN and password in conformance with ITU-T G.984.3 Support Multicast GEM port Support loop detection
Gateway
Multiple WAN interfaces supporting WAN Connection: Bridge, IPOE, PPPOE Support IPV4/IPV6 dual-stack Support port forwarding and DHCP server for LAN devices Support NAT and NAPT Support ACL (Access Control List) Support Firewall Support ALG, DMZ, DDNS, UTP, UPNP
Ethernet/IP
802.1D bridging VLAN tagging/detagging per Ethernet port VLAN stacking (Q-in-Q) and VLAN Translation IP ToS/DSCP to 802.1p mapping Class of Service based on UNI, VLAN-ID, 802.1p bit, and combination Marking/remarking of 802.1p IGMP v2/v3 snooping and IGMP snooping with proxy report Broadcast/Multicast rate limiting
Management
Webpage management by default IP address Remote access by WAN interface through HTTP and Telnet Standard compliant OMCI interface as defined by ITU-T G.984.4 and G.988 Compliant to TR-069, TR-098, TR-104 Two software hold with integrity checking and automatic rollback CATV Remotely enabled/disabled by OMCI or TR-069

Documentation

Download

Specification

User Manual

Certificate

[sp_easyaccordion id="4452"]

Ordering Info

1GE+CATV XPON ONU OG-92SR
Description	1GE+CATV XPON ONU
	G22SC01
Warranty Period	12 Months
Accessories Pack	1* 12V 0.5A Power Adapter (EU/ US /UK type), 1* GPON ONU, 1* User Guide
