The OG-976V is a GPON/GEPON auto-adaptive ONU, which is working as FTTH Gateway Unit to help telecom operators to deliver triple-play services(Internet, Video, Voice) on one fiber.
As an FTTH gateway Unit, OG-976V is built with the interfaces of 4GE+2POTS+Dual-Band WIFI +2USB, which meets the needs of all scenarios. OG-976V is a dual-band WIFI GPON ONU with IEEE 802.11b/g/n/ac compliant, the wireless throughput can reach 1200Mbps.

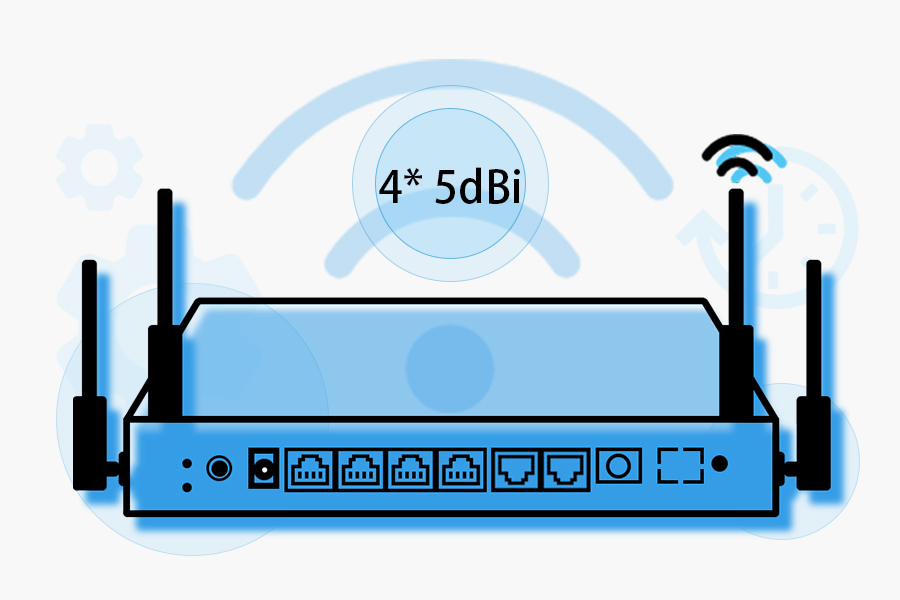

To improve the subscribers’ wireless network experience, the OG-976V is an XPON ONU built with 4* 5dBi external WIFI antennas (7dBi Optional), providing the good WIFI signal strength and WIFI coverage.
With Powerful firmware inside, OG-976V has good compatibility with mainstream GPON or GEPON OLT platforms, such as MA5800-X7, C600 & C300. Support OMCI-based provisioning like WAN interface, WLAN parameters, and VOIP setting.
OG-976V Hardware |
|
Interface description |
|
WAN (Fixed Optical Connector ) | SC/APC or SC/UPC |
LAN | 4*10/100/1000 Base-T with RJ45 connectors |
Voice | 2* FXS voice ports with RJ11 connectors |
USB | 2*USB 2.0 |
WLAN | Dual-Band WIFI 2.4GHz MIMO 2*2, 5GHz MIMO 2*2 IEEE 802.11b/g/n/ac Compliant |
Antenna | 4* 5dBi (7dBi Optional)External Wireless Antenna |
WPS | 1*WPS |
Reset | 1*Pinhole Reset Button |
Power | +12V (external AC/DC adapter) |
LED Indicator |
|
Power LOS PON LAN1 LAN2 LAN3 LAN4 POTS1 POTS2 2.4G 5G WPS USB | |
GPON features |
|
SFF type laser, SC/APC, or SC/UPC connector Bosa onboard optical solution Receiving sensitivity -27dBm (-33dBM optional), and -8dBm overload, Transmitting optical power: 0.5dBm~+4dBm 1.244 Gbps burst mode upstream transmitter; 2.488 Gbps downstream receiver Wavelengths: upstream 1310nm, downstream 1490nm |
|
Ethernet features |
|
4* 10/100/1000 Base-T MDI/MDIX RJ-45 port compliant IEEE 802.3/802.3u Hardware-based 10/100/1000, full/half, flow control auto-negotiation Non-blocking wire-speed reception and transmission Full duplex IEEE 802.3x flow control and half-duplex backpressure flow control |
|
WLAN features |
|
Compliant with IEEE 802.11 b/g/n/ac 2.4GHz, MIMO 2×2, transmission bandwidth up to 300Mbps 5GHz, MIMO: 2×2, transmission bandwidth up to 900Mbps |
|
Power Supply |
|
Power supply | External AC/DC power adapter 12V 1.5A |
Power Consumption | less than 19W |
Working Environment |
|
Temperature | -10℃ ~ 45℃ |
Humidity | 8%~ 95% relative humidity |
Installation |
|
Desk | Desk-top |
Wall | Wall-Mounted |
OG-976V Software |
|
GPON |
|
ITU-T G.984.X standard Complaint 8 T-CONTs & 32 GEM Ports per device Flexible mapping between GEM Ports and T-CONT Support for Multicast GEM Port AES-128 Decryption with key generation and switching FEC (Forward Error Correction) 802.1p mapper service profile on U/S Activation with automatic discovered SN and password in conformance with ITU-T G.984.3 Support Multicast GEM port Support loop detection |
|
Gateway |
|
Multiple WAN interfaces supporting WAN Connection: PPPOE, DHCP, Static Support IPV4/IPV6 dual-stack Support port forwarding and DHCP server for LAN devices Support NAT and NAPT Support ACL (Access Control List) VPN pass-through PPTP, L2TP, IPSec Support Firewall Support ALG, DMZ, DDNS, UTP, UPNP |
|
Ethernet/IP |
|
802.1D bridging VLAN tagging/detagging per Ethernet port VLAN stacking (Q-in-Q) and VLAN Translation IP ToS/DSCP to 802.1p mapping Class of Service based on UNI, VLAN-ID, 802.1p bit, and combination Marking/remarking of 802.1p IGMP v2/v3 snooping and IGMP snooping with a proxy report Broadcast/Multicast rate limiting |
|
VOIP |
|
3-REN Multiple Codecs: G.711 G.729, G.723.1 Multiple Protocol support: SIP (RFC3261), MEGACO v2 (H.248), SDP (RFC2327), RTP (RFC3550/3551) T.38 FAX Support various CLASS services – Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Toggle, Three-Way Calling, Distinctive Ringing, etc. |
|
WLAN |
|
Compliant to IEEE 802.11b/g/n/ac Support Multiple SSID, Support SSID hidden Support WPA/WPA2/WPA3 MAC Filter based on each SSID |
|
Management |
|
Webpage management by default IP address Remote access by WAN interface through HTTP, HTTPS, Telnet, SSH Standard-compliant OMCI interface as defined by ITU-T G.984.4 and G.988 Compliant to TR-069, TR-098, TR-104 Support SNMP Two software hold with integrity checking and automatic rollback |
AC WIFI GPON ONU OG-976V |
|
Description | 4GE+2POTS+Dual-band WIFI+ 2USB GPON ONU |
Part Number | G22SW07 |
Warranty Period | 12 Months |
Accessories Pack | 1* 12V 1.5A Power Adapter (EU/ US /UK type), 1* GPON ONU, 1* User Guide |
